Kitchen Cabinets and Bedroom Closets
and  30 November 02 Update

The cabinet maker has begun his work.  Here are my concept drawings for the kitchen cabinets and the bedroom closets (or do you call them wardrobes?).  Jesus, our cabinet maker, will turn them into reality.

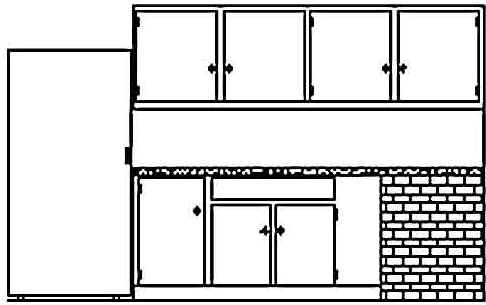

This is the view toward the sink.

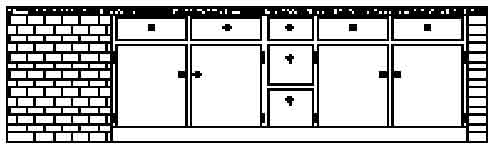

This is the view toward the island.

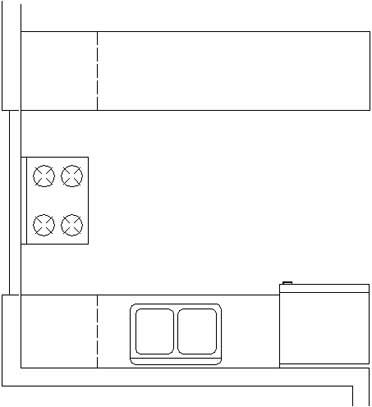

This is a typical kitchen plan.

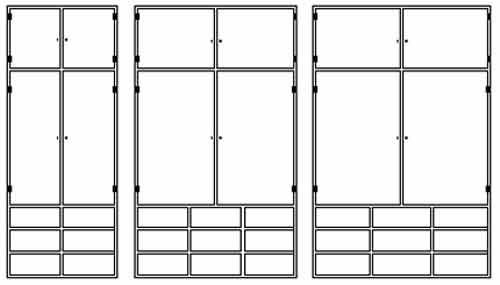

These are the bedroom closets.  From the left they are for the boy's room, the girl's room, and the parent's room.

These custom wooden units fit into the niches built into each room.  They extend from floor to ceiling.

There are drawers on the bottom, a center closet section for hanging clothes, and a top shelf section for little used items (hiding Christmas presents?).  The closet doors will have mirrors on the inside surface.

Both the kitchen and bedroom units will have a natural wood finish.


Jesus is starting a kitchen wall cabinet.



After the plaster is done and the floor is scraped clean, an inch and a half (4 cm) of fine concrete is poured and carefully smoothed to make a finished floor ready for the tile.




The plaster guys are installing the drop ceiling below the air condition-ing ducts and making a plaster wall were needed..



PROJECT COST SUMMARY TO DATE
in US dollars converted from Mexican pesos at 9:1


Stuff and Things -- Finishing Up   11/30

Material

$ 796

Labor

1,789
Total Stuff and Things

$2,585

Continuing Phases

Electrical

 3,507

These five items are (will be) material only, Labor will be provided by the family and me.

Plumbing

 510

Iron Work

 2,116

Tile

Paint

Air Conditioning

 1,451

These four items are (will be) material and labor.

Cabinetry

 1,656

Plaster

 3,366

Stucco

 541



Social Security payments

 4,235



Previous Phases:

North Roof

 5,728

South Roof & Stairs

 4,964

North 2nd Floor Shell

 4,077

North 2nd Floor Slab

 4,077

South 2nd Floor Shell

4,759

South 2nd Floor Slab

4,514

South 1st Floor Shell

 6,934

The cost of the form lumber has not been included because it has con-siderable re-sale value.  Its net cost will be included later.

North 1st Floor Shell

7,692

Property Walls

6,808

Property Purchase

24,003

PROJECT TOTAL on 11/30

$ 93,348
